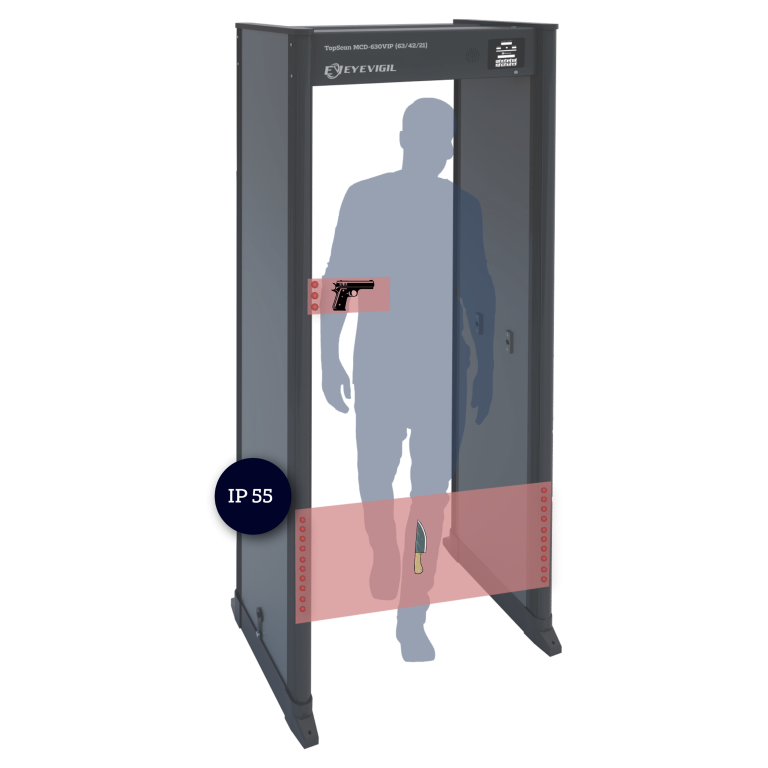

TopScan series walk-through metal detectors – MCD-630VIP
The EyeVigil TopScan MCD-630VIP is a high-performance walk-through metal detector designed to provide maximum security, precision, and efficiency in demanding environments. With advanced multi-zone scanning technology offering up to 63 detection zones, it allows accurate localization of metallic objects by height and width, reducing inspection time and increasing throughput. Its high sensitivity and selectivity ensure reliable detection of both magnetic and non-magnetic metals, while adjustable passage widths and 34 built-in programs make it adaptable for diverse applications, from airports and government facilities to stadiums and VIP venues.
Light
indication
Increased noise
immunity
Parallel
use
Maximum Security
Accurate multi-zone detection for reliable threat identification
Smart & Flexible
Adjustable zones, programs, and passage width for any environment
Durable Performance
IP55 protection, long service life, and uninterrupted operation
- Multi-Zone Detection: Available in 63, 42, or 21 zones for precise object localization.
- High Sensitivity & Selectivity: Capable of detecting both magnetic and non-magnetic metals with up to 200 sensitivity levels per zone.
- Parallel Operation: Supports up to 20 units working simultaneously without interference, thanks to 63 operating frequencies.
- Integration Ready: Easily connects with access control systems, turnstiles, airlock cabins, and CCTV for complete security management.
- Rugged & Reliable: Dust and moisture-resistant housing (IP55) with enhanced noise and vibration immunity.
- User-Friendly Interface: Equipped with LCD display, remote control, and intuitive control unit menu with password protection.
- Smart Alarm System: Audible and visual alarms with 12 tones, LED indicators, and STOP/GO light panels for efficient crowd control.
- Performance Tracking: Built-in counters for passes and alarms, with maximum values up to 9999.

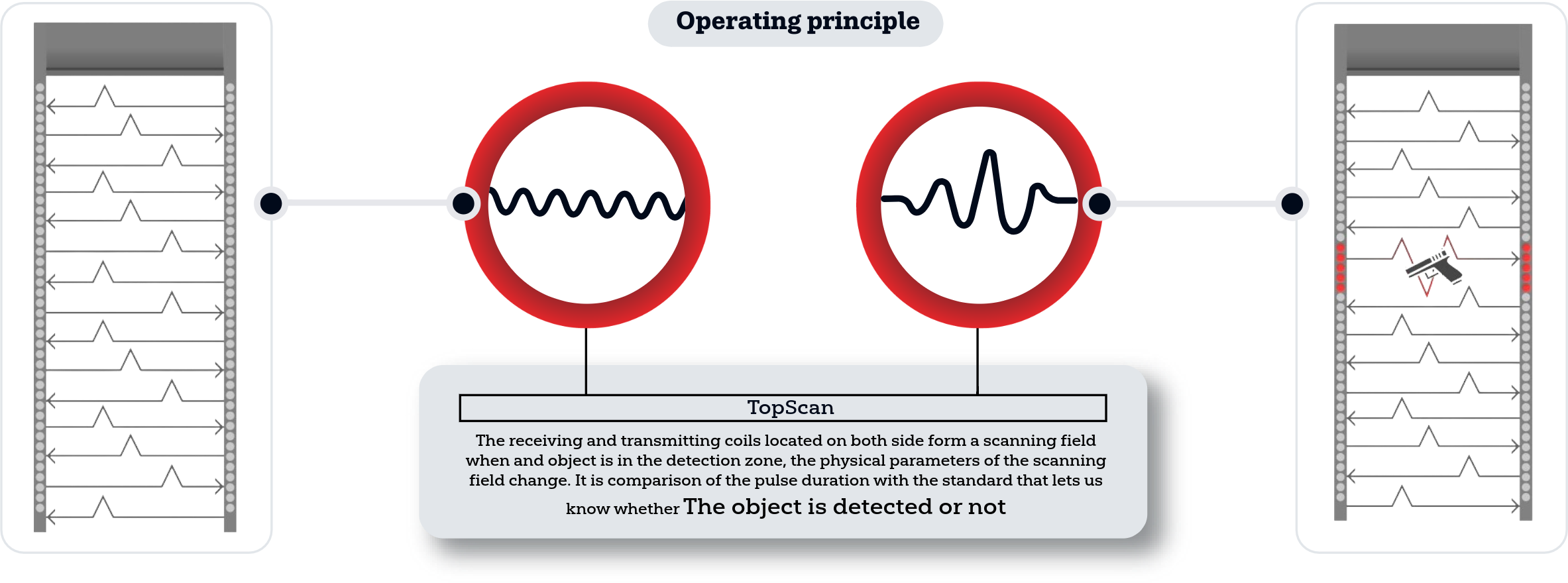

Operating Principle
The TopScan series walk-through metal detectors utilize advanced multi-zone scanning technology to accurately detect and locate metal objects. The system generates an electromagnetic field within the passageway, and any disruption caused by a metal object is immediately detected. This change is processed by the system and a signal is sent to alert the operator.

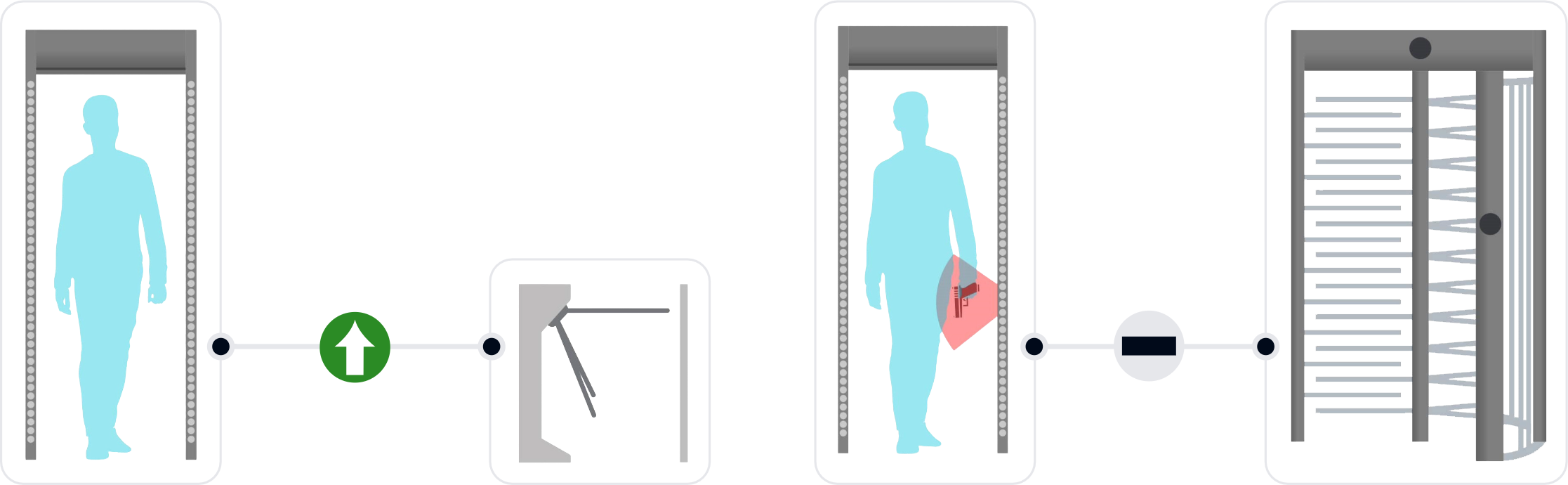

Integration into Access Control Systems
The TopScan series metal detectors can be seamlessly integrated into existing access control systems. They feature built-in interfaces for connecting to external devices such as turnstiles, airlock cabins, and video surveillance systems, offering a comprehensive solution for facility security.
Recommended Layout
For optimal performance, it is recommended to install the TopScan series metal detectors at least 50 cm away from any metal structures or other sources of electromagnetic interference. When installing multiple units in parallel, maintain a minimum distance of 50 cm between them to avoid mutual interference.

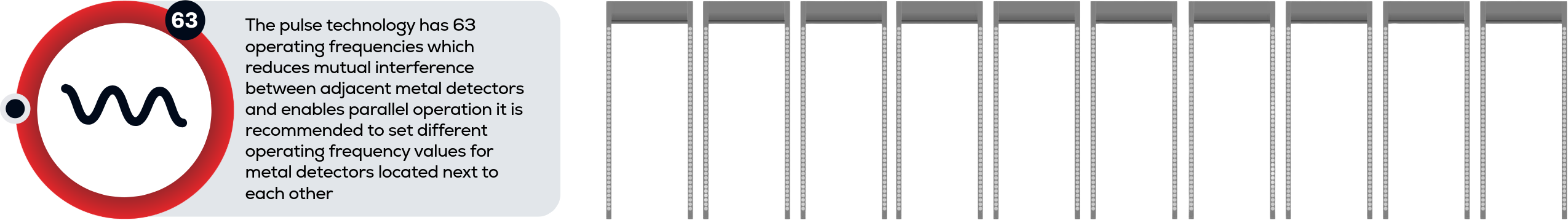

Parallel Operation
The TopScan series metal detectors support the simultaneous operation of up to 20 units. This is made possible by configuring different operating frequencies, which eliminates mutual interference and ensures stable performance of each device within the system.

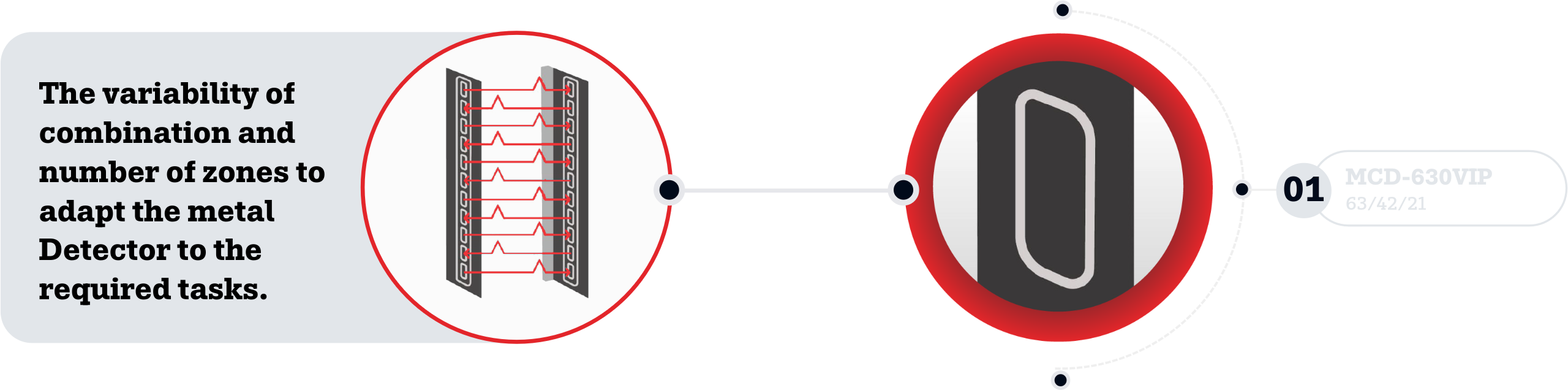

Combination of Detection Zones
Depending on the model, the TopScan series metal detectors offer different numbers of detection zones:
- MCD-600VIP TopScan: 6 zones
- MCD-330VIP TopScan: 33 zones
- MCD-630VIP TopScan: 63 zones
Number of Zones
The number of detection zones varies by model in the TopScan series metal detectors. A higher number of zones allows for more detailed scanning and precise localization of metal objects, which is especially crucial for sites with heightened security needs.
The TopScan series arched metal detectors combine advanced technology, reliability, and ease of integration, delivering a high level of security across a variety of locations.
Possibility of Expansion
The EyeVigil TopScan series walk-through metal detectors support adjustable passage widths to meet the specific requirements of a facility. The design allows the frame to be expanded to 760 mm, 880 mm, or 1000 mm, ensuring comfortable passage for various types of visitors. This feature is especially important for high-traffic facilities, where accommodating people with large carry-on baggage, baby strollers, or wheelchairs is necessary.
| Series | TopScan |
| Number of detection zones | 63, 42, 21 |
| Passage width (mm) | 760 |
| Dimensions of passage (mm) LxWxH | 590 x 760 x 2000 |
| External dimensions (mm) LxWxH | 690 x 880 x 2200 |
| Package dimensions (mm) LxWxH | 2300 x 900 x 190 |
| Net weight (kg) | 65 |
| Gross weight (kg) | 74 |
| Dust and moisture resistant housing coating | Yes |
| Protection class (IP) | 55 |
| Number of metal detectors in parallel use (number of operating frequencies) | 50 |
| Number of levels of adjustment of overall sensitivity | 60 |
| Independent sensitivity adjustment for each zone | Yes |
| Number of sensitivity adjustment levels for each zone | 200 x 21 |
| Sound alarm notification | Yes |
| Number of alarm tones | 12 |
| Light signal alarm | Yes |
| Presence of LEDs in antenna panels | Yes |
| Number of standard programs | 34 |
| Number of IR sensor response modes | 4 |
| Pass counter | Yes |
| Maximum value of the pass counter | 9999 |
| Alarm counter | Yes |
| Maximum value of alarm counters | 9999 |
| Infrared (IR) analysis function | Yes |
| Selectivity | Magnetic and non-magnetic metals |
| Degree of object localization | Accurate |
| Non-volatile memory for storing settings | Yes |
| Self-diagnostic test mode | Yes |
| Throughput (persons/min) | 60 |
| LCD – display | Yes |
| Automatic counting of real alarms | Yes |
| Automatic counting of random alarms | Yes |
| Filter for eliminating low-frequency impulse interference | Yes |
| Automatic sensitivity setting function in all zones simultaneously | Yes |
| Protection against mutual interference | Yes |
| Protection against vibration interference | Yes |
| Possibility of working with metal detectors of other brands | Yes |
| Ability to synchronize multiple devices | Yes |
| Light board with STOP/GO symbols to regulate the flow of people | Yes (international symbols) |
| Enhanced detection speed | Yes |
| Number of passwords to change settings | 2 |
| Four-digit password | Yes |
| Control unit menu lock | Yes |
| Remote control | Yes |
| Increased noise immunity (minimum distance between models, mm) | 300 |
| Alarm output for controlling third-party equipment (dry contacts) | Yes |
| Possibility of synchronization with PC | No |
| Power (W) | ≤ 15 |
| Voltage (V) | 240–110V / 50–60Hz |
| Operating temperature range | -25°C to +65°C |
| Autonomous work | Yes, option |
| Service life | 10 years |
| Battery Packs (included) | Lithium modules provide typical 4–8 hours operation |
| Warranty | 24 Months Limited Parts |
